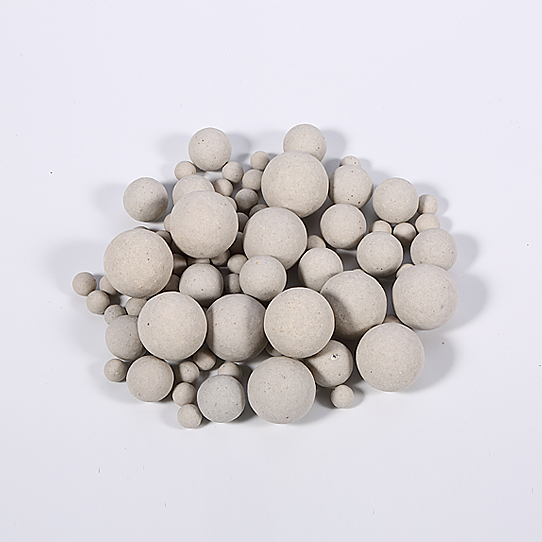

17%AL2O3 Inert Alumina Ceramic Ball - Catalyst Support Media


KELLEY 17%AL2O3 Inert Alumina Ceramic Ball (Catalyst Support Media) are the most widely used as Catalyst Support Media in the world wide because of their excellent consistence and reliability. It produced by very high quality chemical-porcelain clay materials, which has quite excellent stability, high mechanical strength and resistance to thermal shock, This makes them all ideal choice for support of all types of catalyst. It's widely used in petroleum, chemical, fertilizer, gas and environmental protection industries, as a catalyst in the reactor to cover support material and tower packing. It has a high temperature and high pressure resistance, bibulous rate is low, the characteristics of the chemical performance is stable. Can withstand the erosion of acid, alkali and other organic solvents, and can endure in the production process of temperature changes. Its main function is to increase gas or liquid distribution points, support and protection intensity is not high activity of the catalyst.


Inquire Now
Chemical Composition of 17%AL2O3 Inert Alumina Ceramic Ball - Catalyst Support Media
Al2O3+SiO2 > 93% Al2O3 17 - 19%
Fe2O3 < 1% MgO < 0.5%
K2O+Na2O+CaO < 4% Other < 1%

Leach able Fe2O3 is less than 0.1%.

Physical Properties of 17%AL2O3 Inert Alumina Ceramic Ball - Catalyst Support Media
Item Value Operation temp.(max) (℃) 1200
Water absorption (%) < 0.5 Moh's hardness (scale) > 6.5
Bulk density (g/cm3) 1.35 - 1.4 Acid resistance (%) > 99.6
Specific gravity (g/cm3) 2.3 - 2.4 Alkali resistance (%) > 86
Free volume (%) 40%
Crush Strength of 17%AL2O3 Inert Alumina Ceramic Ball - Catalyst Support Media
Size Crush strength
Kg/particle KN/particle
1/8" (3mm) > 35 > 0.35
1/4" (6mm) > 60 > 0.60
3/8" (10mm) > 85 > 0.85
1/2" (13mm) > 185 > 1.85
3/4" (19mm) > 487 > 4.87
1" (25mm) > 850 > 8.5
1-1/2" (38mm) > 1200 > 12
2" (50mm) > 5600 > 56

Other size can be customize.

Size and Tolerance (mm)
Size 3/6/9 9/13 19/25/38 50
Tolerance ± 1.0 ± 1.5 ± 2 ± 2.5
