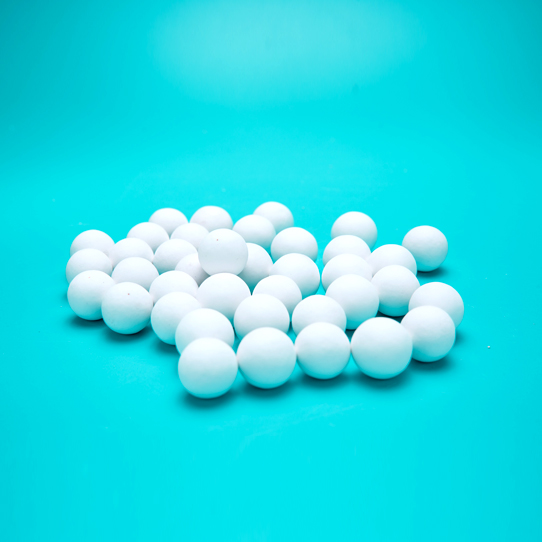

99%AL2O3 Inert Alumina Ceramic Ball - Catalyst Support Media


99% High Alumina Ceramic Ball (Catalyst Support Media) Is made from alumina powder of low silicon content. The high purity and high strength make them extremely high temperature resistance, is used to avoid the leaching reaction tower of silica cover downstream equipment or dirt or poisoned catalyst carrier. This makes them all ideal choice for support of all types of catalyst. It's widely used in petroleum, chemical, fertilizer, gas and environmental protection industries, as a catalyst in the reactor to cover support material and tower packing. It has a high temperature and high pressure resistance, bibulous rate is low, the characteristics of the chemical performance is stable. Can withstand the erosion of acid, alkali and other organic solvents, and can endure in the production process of temperature changes. Its main function is to increase gas or liquid distribution points, support and protection intensity is not high activity of the catalyst.


Inquire Now
Chemical Composition of 99%AL2O3 Inert Alumina Ceramic Ball - Catalyst Support Media
Al2O3 > 99% Fe2O3 <0.1%
MgO < 0.5% SiO2 < 0.2%
Na2O < 0.05% TiO2 < 0.05%
Physical Properties of 99%AL2O3 Inert Alumina Ceramic Ball - Catalyst Support Media
Item Value Water absorption (%) <1
Packing density (g/cm3) 1.9-2.2 Specific gravity (g/cm3) >3.6
Operation temp.(max) (℃) 1650 Apparent porosity (%) <1
Moh's hardness (scale) >9 Acid resistance (%) >99.6
Alkali resistance (%) >85
Crush Strength of 99%AL2O3 Inert Alumina Ceramic Ball - Catalyst Support Media
Size Crush strength
Kg/particle KN/particle
1/8" (3mm) > 203 > 2
1/4" (6mm) > 459 > 4.6
1/2" (13mm) > 877 > 8.7
3/4" (19mm) > 1220 > 12
1" (25mm) > 1630 > 16
1-1/2" (38mm) > 2340 > 23
2" (50mm) > 3460 > 34
Size and Tolerance (mm)
Size 3/6/9 9/13 19/25/38 50
Tolerance ± 1.0 ± 1.5 ± 2 ± 2.5
