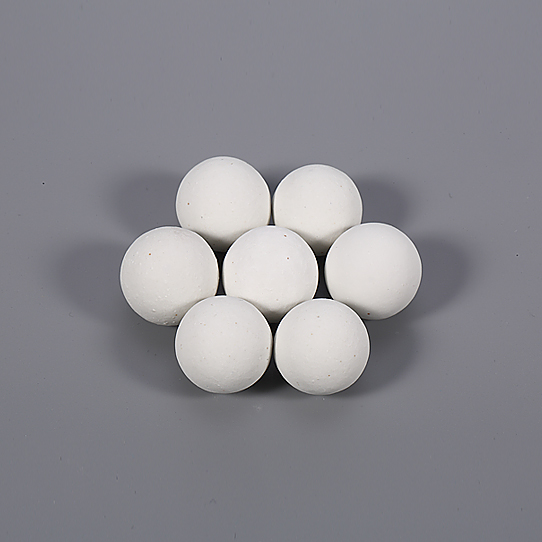

Mid-Alumina Ceramic Ball


Mid -Alumina Inert ceramic balls are widely used in many fields, including petroleum, chemical engineering, fertilizer production, natural gas and environmental protection. They are used as covering and supporting materials of catalysts in reaction vessels and as packing in towers. They have stable chemical features and a low rate of water absorption, resist high temperatures and high pressure, and also resist the corrosion of acid, alkali and some other organic solvents. They can stand the change in temperature during the manufacturing process. The main role of inert ceramic balls is to increase the distribution spots of gas or liquid, and to support and protect the activating catalyst with low strength.


Inquire Now
Chemical Composition of Mid-Alumina Ceramic Ball
Al2O3+SiO2 > 93% Al2O3 45 - 50%
Fe2O3 < 1% MgO < 0.5%
K2O+Na2O+CaO < 4% Other < 1%
Physical Properties of Mid-Alumina Ceramic Ball
Item Value Water absorption (%) <2
Bulk density (g/cm3) 1.4-1.5 Specific gravity (g/cm3) 2.4-2.6
Free volume (%) 40 Operation temp.(max) (℃) 1200
Moh's hardness (scale) >7 Acid resistance (%) >99.6
Alkali resistance (%) >85
Crush Strength of Mid-Alumina Ceramic Ball
Size Crush strength
Kg/particle KN/particle
1/8" (3mm) > 35 > 0.35
1/4" (6mm) > 60 > 0.60
3/8" (10mm) > 85 > 0.85
1/2" (13mm) > 185 > 1.85
3/4" (19mm) > 487 > 4.87
1" (25mm) > 850 > 8.5
1-1/2" (38mm) > 1200 > 12
2" (50mm) > 5600 > 56
Size and Tolerance (mm)
Size 3/6/9 9/13 19/25/38 50
Tolerance ± 1.0 ± 1.5 ± 2 ± 2.5
