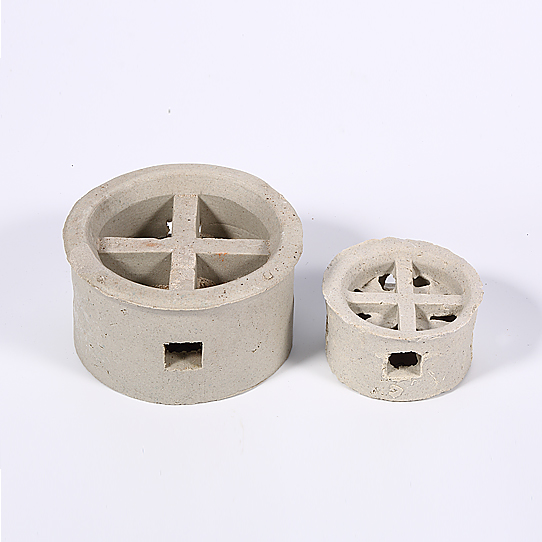

Ceramic Cascade Mini Ring

Ceramic Cascade Mini Ring with excellent acid resistance and heat resistance. They can resist to corrosion of various inorganic acids, organic acids and organic solvents except hydrofluoric acid, and can be used in high or low temperature conditions. Consequently their application ranges are very wide. Ceramic Cascade Mini Ring can be used in the drying columns, absorbing columns, cooling towers, scrubbing towers in chemical industry, metallurgy industry, coal gas industry, oxygen producing industry, etc.

Inquire Now

Technical Specification of Ceramic Cascade Mini Ring
SiO2 + Al2O3	>92%	CaO	<1.0%
SiO2	>76%	MgO	<0.5%
Al2O3	>17%	K2O+Na2O	<3.5%
Fe2O3	<1.0%	Other	<1%

Physical & Chemical Properties of Ceramic Cascade Mini Ring
Water absorption	<0.5%	Moh's hardness	>6.5 scale
Porosity	<1%	Acid resistance	>99.6%
Specific gravity	2.3-2.40 g/cm3	Alkali resistance	>85%
Max Operation temp	1200℃

Dimension and Other Physical Properties
Type	Dimension	Surface area	Void rate	Bulk numbers per m3	Bulk density	Dry packing factor
Φ	D × H × THK	α	%	Numbers	γp	α/ε3
mm	mm	m2/m3	m3/m3	Pcs/ m3	kg/m3	m-1
Φ25	25 × 15 × 3	210	73	72000	650	540
Φ38	38 × 23 × 4	153	74	21600	630	378
Φ50	50 × 30 × 5	102	76	9100	580	232
Φ76	76 × 46 × 9	75	78	2500	530	158
