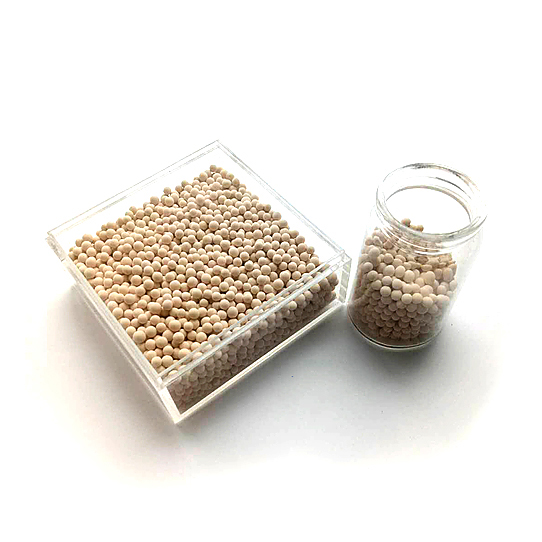

4A Molecular Sieve

Molecular Sieve type 4A is an alkali alumino silicate; it is the sodium form of the Type A crystal structure. 4A molecular sieve has an effective pore opening of about 4 angstroms (0.4nm). Type 4A molecular sieve will adsorb most molecules with a kinetic diameter of less than 4 angstroms and exclude those larger. Such adsorbable molecules include simple gas molecules such as oxygen, nitrogen, carbon dioxyde and straight chain hydrocarbons. Branched chain hydrocarbons and aromatics are excluded.

Inquire Now

Technical Specification of 4A Type Molecular Sieve
Model	4A
Color	Light gray
Nominal pore diameter	4 angstroms
Shape	Sphere		Pellet
Diameter (mm)	1.7-2.5	3.0-5.0	1.6	3.2
Size ratio up to grade (%)	≥98	≥98	≥96	≥96
Bulk density (g/ml)	≥0.72	≥0.70	≥0.66	≥0.66
Wear ratio (%)	≤0.20	≤0.20	≤0.20	≤0.20
Crushing strength (N)	≥35/piece	≥85/piece	≥35/piece	≥70/piece
Static H2O adsorption (%)	≥22	≥22	≥22	≥22
Static methanol adsorption(%)	≥15	≥15	≥15	≥15
Water content (%)	≤1.0	≤1.0	≤1.0	≤1.0
Typical chemical formula	Na2O . Al2O3. 2SiO2. 4.5 H2O SiO2: Al2O3≈2
Typical application	a) Drying and removing of CO2 from natural gas, LPG, air, inert and atmospheric gases, etc. b) Removal of hydrocarbons, ammonia and methanol from gas streams (ammonia syn gas treating) c) Special types are used in the air break units of buses, trucks and locomotives. d) Packed in small bags, it maybe used simply as a packaging desiccant.
Package	Carton box; Carton drum; Steel drum
MOQ	1 Metric Ton
Payment terms	T/T; L/C; PayPal; West Union
Warranty	a) By National Standard HGT 2524-2010
Warranty	b) Offer lifetime consultation on problems occurred
Container	20GP	40GP	Sample order
Quantity	12MT	24MT	< 5kg
Delivery time	3 days	5 days	Stock available

Regeneration of 4A Type Molecular Sieve

Molecular sieve Type 4A can be regenerated by either heating in the case of thermal swing processes; or by lowering the pressure in the case of pressure swing processes.

To remove moisture from a 3A molecular sieve, a temperature of 200-230°C is required. A properly regenerated molecular sieve can give moisture dew points below -100°C.

The outlet concentrations on a pressure swing process will depend on the gas present, and on the conditions of the process.

Size

4A - Zeolites are available in beads of 1-2 mm(10x18 mesh), 2-3 mm(8x12 mesh), 2.5-5 mm(4x8 mesh) and as powder, and in pellet 1.6mm, 3.2mm.

Attention

To avoid damp and pre-adsorption of organic before running, or must to be reactivated.
