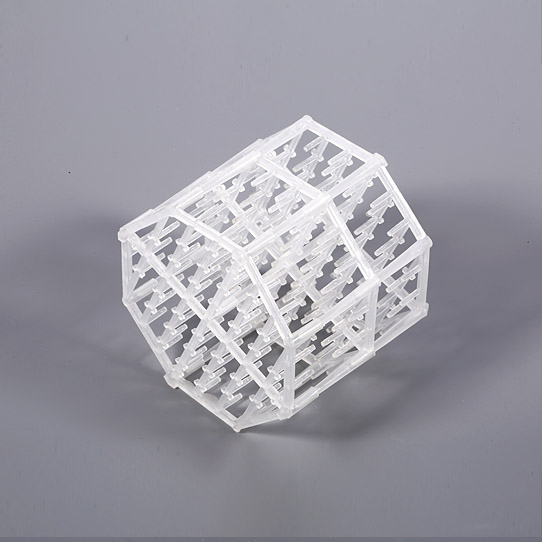

Plastic Q-pack

Plastic Q-pack suitable for use in a lot of different potable water treatment processes, such as:

Biological treatment

Physical filtration

Pre-treatment for desalination

Drinking water treatment

Q-pack's large pore volumes and surface areas make it an ideal media for biological treatment of drinking water. Bio film processes are excellent for treating raw water containing ammonia, manganese, iron etc. In conventional filtration processes Q-pack can be used in different ways. In dual media filters Q-pack can be used in combination with sand. Tests have shown that Q-pack operates as well as or better than traditional filter media in these types of filters. Q-pack can not only be used in traditional drinking water treatment, but also in treatment of saline water. In desalination plants one of the most important parts is the pre-treatment process. Q-pack is an excellent filter media for use in pre-treatment filters in desalination plants.

Inquire Now

Technical Specification of Q-Pack
Product name		Plastic Intalox Saddle
Material		PP, PE, PVC, CPVC, PVDF, etc
Life span		>3 years
Size mm	Drip several	Void volume %	Packing number pieces/m3	Packing density Kg/m3	Dry packing factorm-1
82.5*95	388	96.3	1165	33.7	23
Feature	High void ratio, low pressure drop, low mass-transfer unit height, high flooding point, uniform gas-liquid contact, small specific gravity, high efficiency of mass transfer.
Advantage	1. Their special structure make it has big flux, low pressure drop, good anti-impaction capability. 2. Strong resistance to chemical corrosion, large void space. energy saving, low operation cost and easy to be load and unload.
Application	These various plastic tower packing are widely used in petroleum and chemical, alkali chloride, gas and environmental protection industries with max. temperature of 150°.

Physical & Chemical Properties of Q-Pack

Plastic tower packing can be made from heat resistant and chemical corrosion resistant plastics, including polyethylene (PE), polypropylene (PP), reinforced polypropylene (RPP), polyvinyl chloride (PVC), chlorinated polyvinyl chloride (CPVC), polyvinyiidene fluoride (PVDF) and Polytetrafluoroethylene (PTFE). The temperature in media ranges from 60 Degree C to 280 Degree C.

Performace/Material	PE	PP	RPP	PVC	CPVC	PVDF
Density(g/cm3)(after injection molding)	0.98	0.96	1.2	1.7	1.8	1.8
Operation temp.(℃)	90	＞100	＞120	＞60	＞90	＞150
Chemical corrosion resistance	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
Compression strength(Mpa)	＞6.0	＞6.0	＞6.0	＞6.0	＞6.0	＞6.0
