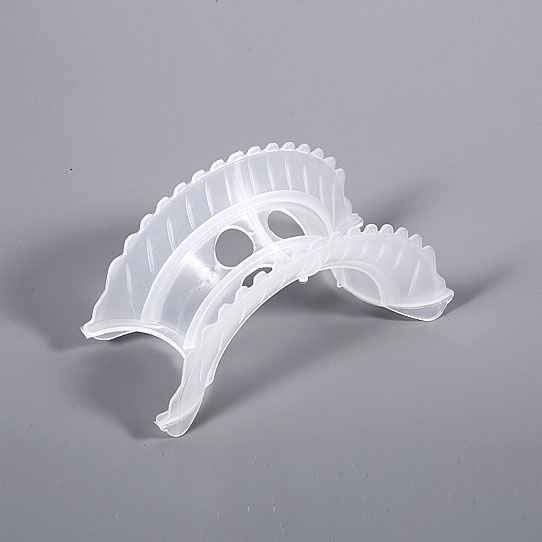

Plastic Super Intalox Saddle

The shape of the Intalox Saddle Ring is a combination of the ring and the saddle, which benefits the advantages of the two. This structure helps liquid distribution and enlarges the quantities of gas holes. The Intalox Saddle Ring has less resistance, bigger flux and higher efficiency than the Pall Ring. It is one of the most widely used packing with good hardness. It has low pressure, big flux and high efficiency of mass transfer, and it is easy to manipulate.

Inquire Now

Technical Specification of Plastic Super Intalox Saddle
Product name				Plastic super intalox saddle
Material				PP/RPP/PVC/CPVC/PVDF, etc
Life span				>3 years
Size inch/mm		Surface area m2/m3	Void volume %	Packing number pieces/ m3	Packing density Kg/m3	Dry packing factor m-1
1”	25 × 12.5 × 1.2	260	90	51200	92	390
1-1/2”	38 × 19 × 1.2	178	96	25200	75	201
2”	50 × 25 × 1.5	168	97	6300	76	184
3”	76 × 38 × 2.6	130	98	3700	64	138

Feature	High void ratio, low pressure drop, low mass-transfer unit height, high flooding point, uniform gas-liquid contact, small specific gravity, high efficiency of mass transfer.
Advantage	1. Their special structure make it has big flux, low pressure drop, good anti-impaction capability. 2. Strong resistance to chemical corrosion, large void space. energy saving, low operation cost and easy to be load and unload.
Application	These various plastic tower packing are widely used in petroleum and chemical, alkali chloride, gas and environmental protection industries with max. temperature of 280°.

Physical & Chemical Properties of Plastic Super Intalox Saddle

Plastic tower packing can be made from heat resistant and chemical corrosion resistant plastics, including polyethylene (PE), polypropylene (PP), reinforced polypropylene (RPP), polyvinyl chloride (PVC), chlorinated polyvinyl chloride (CPVC), polyvinyiidene fluoride (PVDF) and Polytetrafluoroethylene (PTFE). The temperature in media ranges from 60 Degree C to 280 Degree C.

Performace/Material	PE	PP	RPP	PVC	CPVC	PVDF
Density(g/cm3) (after injection molding)	0.98	0.96	1.2	1.7	1.8	1.8
Operation temp.(℃)	90	>100	>120	>60	>90	>150
Chemical corrosion resistance	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
Compression strength(Mpa)	>6.0	>6.0	>6.0	>6.0	>6.0	>6.0
