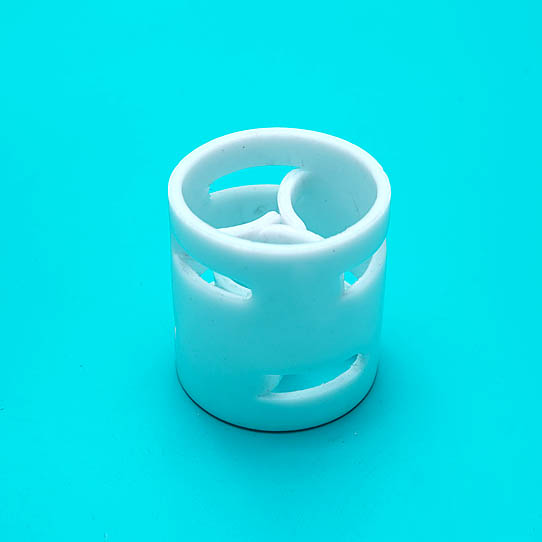

PTFE Pall Ring
PTFE Pall Ring packing has large flux, small resistance, high separation efficiency and operational flexibility.
Inquire Now
Inquire Now
| Technical Specification of PTFE Pall Ring | ||||
|---|---|---|---|---|
| Product name | PTFE pall ring | |||
| Material | PTFE | |||
| Size mm | Surface area m2/m3 | Void volume % | Packing number pieces/m3 | Packing density Kg/m3 |
| 20*20*2 | 267 | 92.8 | 125000 | 550 |
| 25*25*2 | 219 | 93.4 | 60000 | 450 |
| 38*38*2.5 | 165 | 94.6 | 15800 | 420 |
| 50*50*4 | 108 | 94.5 | 6800 | 450 |
| 65*65*5 | 84 | 94.8 | 4600 | 500 |
| 76*76*4 | 73 | 92 | 2000 | 300 |
